Container Mixer

Container Mixer

Container Mixer

Reliance’s (RC) Container Mixer is a medium intensity mixer primarily used in industries where dispersion of material and pigments are essential but where an aggressive mix is not necessary. These units are frequently used in the Powder Coating & Color Concentrate Industries. For more information on the sizes and specs of our container mixer, please view our (RC) Container Mixer Specs Page.

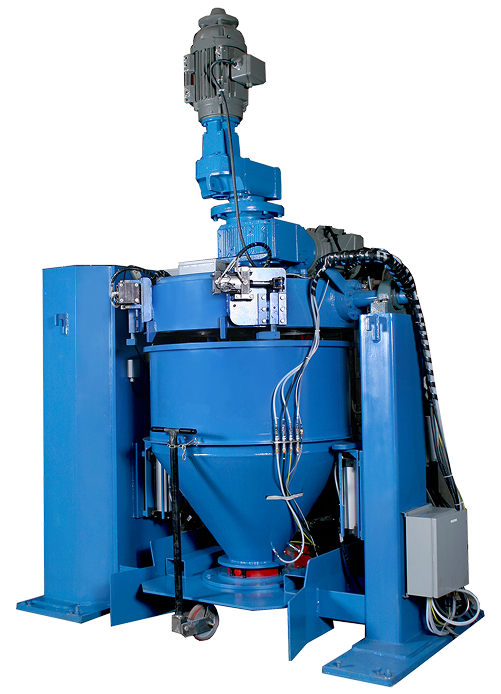

Mixer Hopper

Mixer Hoppers Reliance is specifically designed to aid the mixing process.  Firstly, The conical shape allows the simple forces of gravity and deflection to throw the material back into the rest of the mix. Secondly, Multiple containers allow for easy changeover and less downtime. Furthermore, this mixer can be jacketed for the circulation of a heating or cooling median. If necessary, these can be furnished with a fixed baffle assembly inside the container. Mixer Hopper can be supplied with injection ports where needed.

Container Mixer Tools

Reliance’s Container Mixer tools are provided with two standard tools. The large tool stretches from one end of the mixing head to the other, its primary function is to lift material. The smaller tool is called the chopper tool and is used to fluidize the material.  In addition, These tools are driven by Variable Frequency Drives to allow for speed control.

Based on the application, Reliance can supply specialty tools and choppers for toner, concentrate color, powder coating, and niche applications.

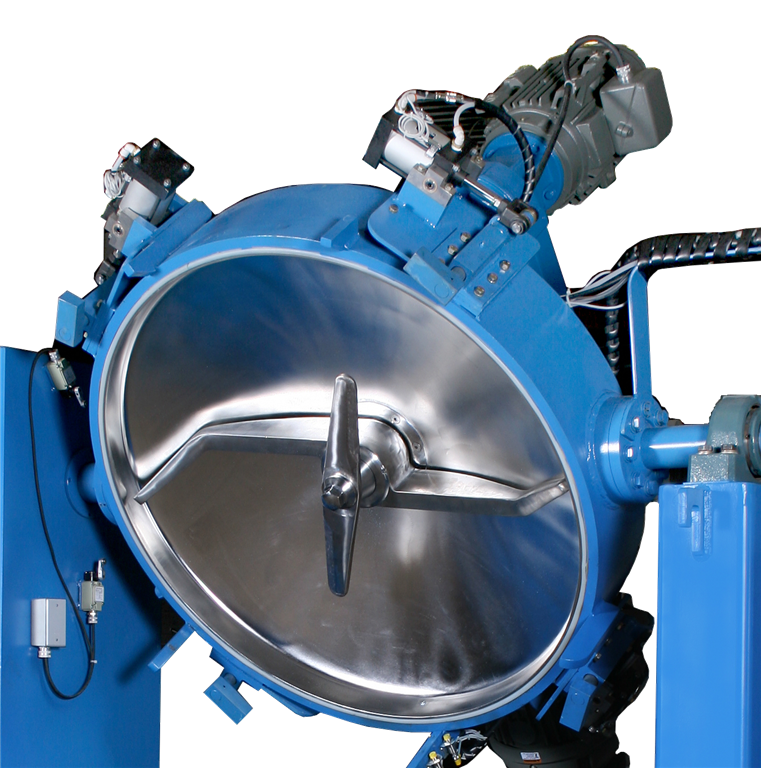

Mixer Heads

The Mixing Head of this Mixer is designed to provide an air-tight seal with the Mixer Container. The mixing head is supplied with air purge shaft seals and a venting port. Chopper Assemblies can be supplied through the Mixer Head for additional shear.

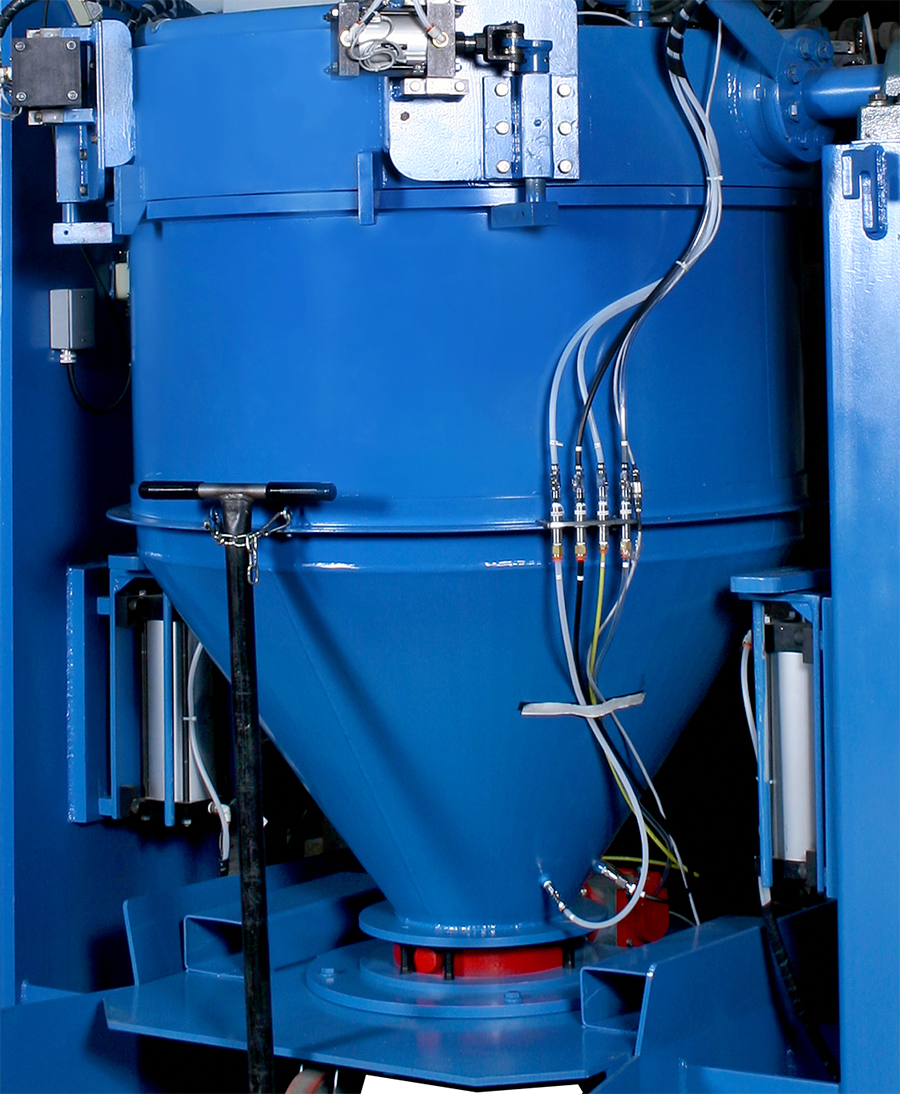

Mixer Injection Nozzles

Nozzles can be added near the discharge for the injection of liquids or gas during the mixing process. They can be used for inverting the mixer as in the case of metallic bonding or chemical reaction-rich processes.

Gases and Liquids can be added to the mixer while the mixer is in the mixing position.
