In industries like powder coating and color concentrates, precision in mixing isn’t just a nice-to-have—it’s the backbone of quality. A small inconsistency in pigment distribution or a little too much stress on sensitive materials can lead to costly defects, wasted product, and frustrated customers.
This is where Container Mixers come in. They’re not the loudest machines on the production floor, but for many manufacturers, they’re the quiet hero—delivering gentle, consistent mixing without compromising efficiency.
At Reliance Mixers, we’ve seen how the right container mixer can transform production by balancing uniform results, easy cleaning, and flexible operation.
The Challenge: Precision Without Aggression
Unlike High Intensity batch Mixers, container mixers operate with a gentle yet effective motion. Materials are lifted, scattered, and homogenized without unnecessary mechanical stress, helping to preserve product integrity while still ensuring consistent results.
For powder coatings, pigments, and specialty chemicals, the common problem is twofold:
- Even distribution is critical to avoid visible flaws in the final product.
- Gentle handling is necessary to preserve product integrity and avoid material degradation.
Container mixers solve this challenge by using controlled, fluid motion to lift, scatter, and homogenize materials—ensuring consistency without over-processing.
How Container Mixers Work
Think of a container mixer as an orchestrator. Instead of brute force, it relies on precise motion and smart design to achieve a uniform blend.
- Materials are loaded into the Hopper.
- The Hopper is loaded under the Mixing Head.
- The Hopper is lifted, clamped, and rotated into the Mixing position.
- The Materials are mixed and redistributed evenly throughout the vessel based on Time or Temperature.
- The Hopper is rotated back down, any built up pressure is released, and the Hopper is lowered and unclamped from the Mixing Head.
This makes container mixer a go-to choice for industries where accuracy, repeatability, and easy cleaning are non-negotiable.
Inside the Design: What Sets Reliance Container Mixers Apart
Every container mixer has critical components that work together to deliver results.
Container Mixer Hoppers
The conical hopper design uses gravity and deflection to homogenize materials evenly. Options like jacketed hoppers for heating/cooling and mirror finishes for easy cleaning ensure performance and easy maintenance. They are robust and made with heavy steel to last for many years of operation.
Container Mixer Tools & Mixing Head
Reliance container mixers are equipped with two primary tools:
- Bottom Tool – extends from end to end and creates lift for the material.
- Fluidizing Tool – fluidizes the material, ensuring even homogenization.
Both tools are powered by Variable Frequency Drives (VFDs), giving operators precise speed control. This feature is especially important in proper dispersion, where a balance of gentle and slightly aggressive mixing is required.
More than just a lid, the mixing head creates an airtight seal and can be fitted with choppers, inerting, injection, and venting ports for advanced applications.
- Equipped with air purge shaft seals and ports
- Tilting Gearmotor with Drive.
- Jacketed Construction with Inlet and Outlet
- Compatible with optional Chopper Assemblies for additional shear

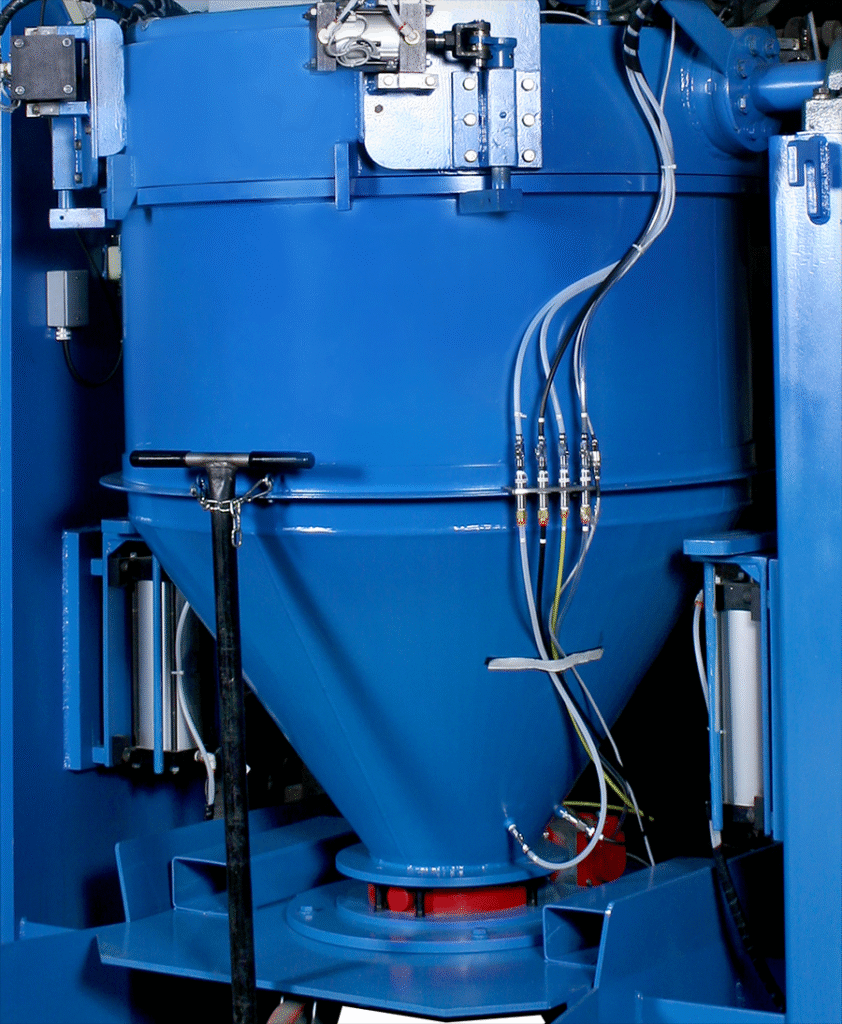

Injection Nozzles
These nozzles allow operators to introduce liquids or gases during mixing, supporting processes like metallic bonding in powder coatings or inerting for sensitive materials.
- Positioned on the hopper near the discharge point for efficient integration or on the Mixing Head.
- Enable inerting processes (e.g., metallic bonding in powder coatings).
- Support liquid or gas injection while the mixer is in operation or stagnent.
Real-World Applications
- Powder Coating: Achieves even pigment distribution and smooth finishes while reducing cleaning downtime.
- Color Concentrates: Ensures pigments are evenly dispersed without degrading the material.
- Specialty Chemicals: Provides gentle handling of sensitive compounds while maintaining efficiency.
Why Manufacturers Choose Reliance
With decades of engineering expertise, Reliance Mixers delivers container mixing systems that are durable, customizable, and performance-driven. Our equipment is trusted across industries for:
- Consistent pigment distribution
- Gentle yet thorough blending
- Configurable options for Powder Coating, Color Concentrates, and specialty applications
- Easy cleaning and maintenance for reduced downtime and faster changeovers
For manufacturers in powder coating, color concentrates, and beyond, a container mixer isn’t just a piece of equipment, it’s the difference between inconsistent results and reliable, repeatable production.
